LN2807 6S 1300KV 5S 1500KV 4S 1700KV Brushless MotorForRC FPV Racing RC Drone Racing

Electric Spec.
Max. P (W)	Voltage (V)		Max. I. (A)	KV	No-load Current (A)		Resistance (mΩ)	Poles	Motor Dim. (mm)	Stator Dim. (mm)	Mounting (mm)	N.W. (g)		Prop. (inch)
1400(6S)	2S~6S		55(6S)	1350	1.8		82	14	φ33*19.6	φ28*7	M3-19*19	52		6"~7"
Thrust Testing Data
Propeller		KV Value		Throttle		Voltage (V)		Current (A)	Thrust Force (g)	Speed (RPM)	Input Power (W)		Efficiency (g/W)
GF7037*3		1350		10%		24.67		0.3	41	3149	6.49		6.28
				20%		24.67		1.1	166	6076	26.40		6.30
				30%		24.65		2.74	375	8822	67.57		5.55
				40%		24.64		5.23	628	11254	128.97		4.87
				50%		24.61		8.18	866	13189	201.29		4.30
				60%		24.57		12.66	1178	15327	311.03		3.79
				70%		24.52		19.13	1570	17586	468.99		3.35
				80%		24.47		26.52	1955	19595	648.99		3.01
				90%		24.40		35.37	2367	21357	862.91		2.74
				100%		24.31		45.81	2722	22783	1113.52		2.44
HQ7X37*3		1350		10%		24.67		0.3	36	3171	6.24		5.80
				20%		24.67		1.0	153	6120	25.19		6.07
				30%		24.67		2.63	352	8909	64.78		5.43
				40%		24.65		5.11	607	11291	126.01		4.82
				50%		24.63		8.05	846	13339	198.27		4.27
				60%		24.59		12.61	1159	15420	309.96		3.74
				70%		24.53		19.10	1529	17642	468.40		3.26
				80%		24.48		26.90	1915	19605	658.61		2.91
				90%		24.41		35.80	2274	21297	873.78		2.60
				100%		24.32		46.19	2537	22602	1123.37		2.26

LN2807 6S 1300KV 5S 1500KV 4S 1700KV Brushless MotorForRC FPV Racing RC Drone Racing

The LN2207 series of brushless motors comes in three different KV ratings: 1700KV, 1900KV, and 2400KV. The KV rating represents the motor's speed constant, indicating the increase in RPM per volt of i...

Parametri proizvoda

×

6S 320kV 350kV 380kV motori drona LN4715 1,5 kg potisne sile

Pošaljite upit

Spec.
Maks. P (W)	Napon (V)	Maks. ja (A)	KV	Struja praznog hoda (A)		Otpornost (mΩ)	Poljaci	Motor Dim. (mm)		Stator Dim. (mm)	Montaža (mm)	N.W. (g)	Prop. (inč)
1052	25~33.6	45	350	1.5		45	14	φ55*38		φ47*15	M3-30*30	277	13"
Podaci o ispitivanju potiska
Propeler	kV vrijednost	gas (%)		U (V)	I (A)		N (RPM)		duriti se (W)		Pin (W)	Učinkovitost (G/W)
GF1310*3	350kV	30		25.13	0.304		1737.5		285		7.6	4.959
		35		25.1	1.128		2188.7		346.9		28.3	4.644
		40		25.07	2.15		2586.8		395.4		53.9	4.6
		45		25.01	3.905		3072.1		444.1		97.7	4.814
		50		24.96	5.722		3427.8		469.5		142.8	5.128
		55		24.9	7.707		3734.9		484.3		191.9	5.495
		60		24.82	10.228		4070.8		494.1		253.9	5.973
		65		24.7	13.866		4458		491.4		342.5	6.798
		70		24.59	17.485		4785.6		481.2		429.9	7.62
		75		24.45	21.663		5093.5		460.1		529.7	8.72
		80		24.3	26.413		5384.7		428.8		641.8	10.186
		85		24.13	31.418		5661.1		393.6		758.3	11.977
		90		23.96	36.765		5909.1		352.2		880.9	14.277
		95		23.75	42.922		6131.1		300.8		1019.5	17.8
		100		23.7	44.411		6217.5		292.6		1052.3	18.591

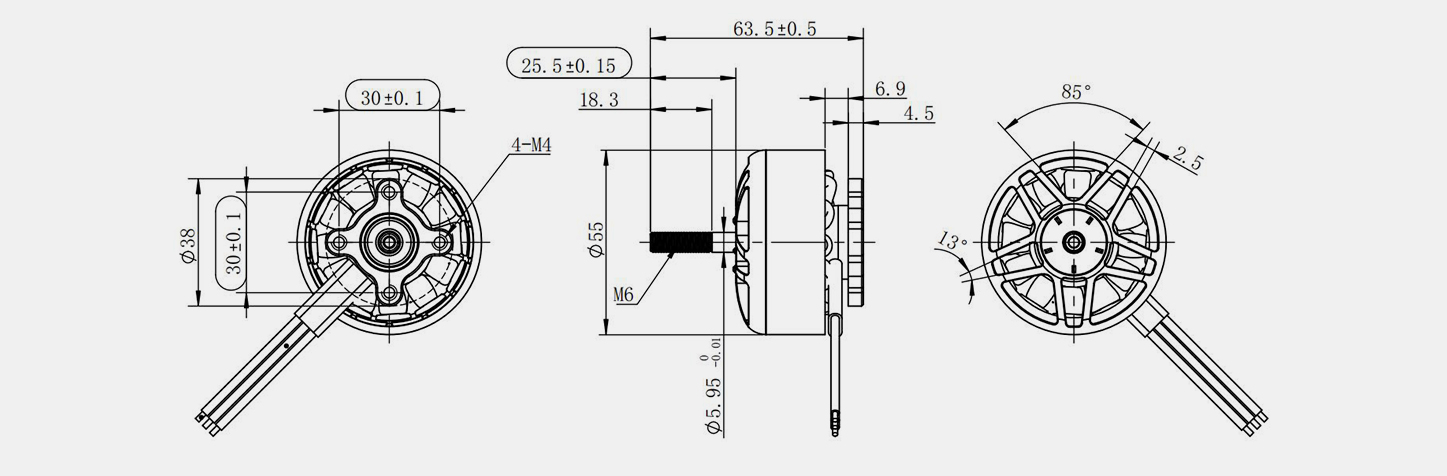

6S 320kV 350kV 380kV motori drona LN4715 1,5 kg potisne sile

The LN4715 6S motor drona bez četkica je dizajniran za visokoučinkovite aplikacije s više rotora, pružajući snažan i učinkovit potisak s preciznom kontrolom. Dizajniran za podršku KV opc...

Parametri proizvoda

×

Visokoučinkovit LN5313 motor drona bez četkica 6S | 320kV / 350kV / 380kV | Potisak do 2 kg za UAV

Pošaljite upit

Spec.
Maks. P (W)	Napon (V)	Maks. ja (A)	KV	Struja praznog hoda (A)		Otpornost (mΩ)		Poljaci	Motor Dim. (mm)	Stator Dim. (mm)		Montaža (mm)	N.W. (g)		Prop. (inč)
1810	25.2~33.6	65	380	0.8		25		14	φ49*32,5	φ42*14		M4- 30*30	246		13"~15"
Podaci o ispitivanju potiska
Propeler		kV vrijednost	gas		Napon (V)		Trenutni (A)		Sila potiska (g)		Brzina (RPM)	Ulazna snaga (W)		Učinkovitost (g/W)
GF1308-3		380	10%		32		0.36		38.95		1117	11.52		3.38
			20%		31.99		1.11		217.75		2378	35.51		6.13
			30%		31.98		2.432		521.91		3578	77.78		6.71
			40%		31.97		4.498		917.14		4687	143.80		6.38
			50%		31.95		8.101		1468.01		5893	258.83		5.67
			60%		31.92		13.087		2113.34		6998	417.74		5.06
			70%		31.87		19.97		2891.65		8108	636.44		4.54
			80%		31.82		30.557		3884.21		9313	972.32		3.99
			90%		31.74		42.237		4809.52		10294	1340.60		3.59
			100%		31.63		56.802		5848.57		11283	1796.65		3.26
HQ15X7-3		380	10%		24.00		0.3		51		881	8.04		6.30
			20%		23.99		1.1		232		1808	25.33		9.18
			30%		23.98		2.35		520		2676	56.31		9.23
			40%		23.96		4.38		894		3489	104.94		8.52
			50%		23.94		8.24		1433		4394	197.24		7.26
			60%		23.90		13.54		2056		5234	323.51		6.36
			70%		23.86		20.59		2782		6043	491.18		5.66
			80%		23.79		30.04		3627		6824	714.58		5.08
			90%		23.71		41.50		4504		7560	983.97		4.58
			100%		23.65		55.29		5422		8266	1307.54		4.15

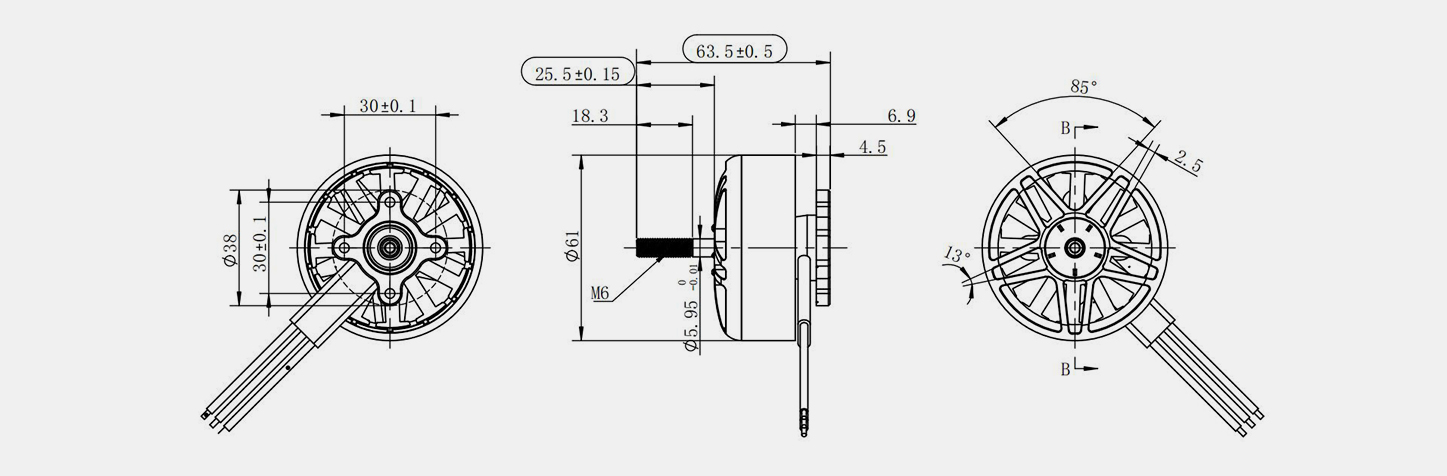

Visokoučinkovit LN5313 motor drona bez četkica 6S | 320kV / 350kV / 380kV | Potisak do 2 kg za UAV

LN5313 motor drona bez četkica dizajniran je za profesionalne bespilotne letjelice s više rotora koje zahtijevaju veliki kapacitet podizanja i stabilne performanse leta. S maksimalnom silom potiska...

Parametri proizvoda

×

20000RPM High Speed Personal Handheld Fan Motor 7.2VDc wo22 Series

Pošaljite upit

Product Features :
High-speed motor for powerful airflow
Compact and lightweight design for easy handling
Energy-efficient operation with 7.2VDC input
Durable and reliable for long-term use

20000RPM High Speed Personal Handheld Fan Motor 7.2VDc wo22 Series

Product Definition :This is a high-speed fan motor designed for portable handheld fans. It operates at a speed of 20,000 RPM, powered by a 7.2VDC power supply, providing excellent air circulation for ...

Parametri proizvoda

×

Dual voltage 230VAC/12VDC into one drive for remote area solar panel power supply system W70 Series with metal shell

Pošaljite upit

Product Features:
Dual voltage support for flexible power sources
Designed with a durable metal shell for enhanced protection
Ideal for solar-powered systems
Reliable performance in remote areas

Dual voltage 230VAC/12VDC into one drive for remote area solar panel power supply system W70 Series with metal shell

Product Definition :This motor supports dual voltage inputs (230VAC and 12VDC), allowing it to be used in remote areas with solar panel systems. It is equipped with a robust metal shell for durability...
