Dron- Jiangsu Retek Motion Co., Ltd.

×

LN2207 1700KV 1900KV 2400KV Brushless Motor for RC Drone FPV

Electric Spec.
Max. P(W)	Voltage(V)		Max. I.(A)		KV	No-load Current(A)			Resistance(mΩ)	Poles	Motor Dim.(mm)	Stator Dim.(mm)		Mounting (mm)	N.W.(g)	Prop.(inch)
960(7S)	2S-7S		40(7S)		1800	1			60	14	φ27.5*11.7	φ22*8		M3-19*16	36	5"~6"
Thrust Testing Data
Propeller		kV Value		Throttle(%)			U(V)	Current(A)		Thrust(g)			Power(W)	Efficiency(g/W)
5055		1800KV		50%				10.68		767			256.3	2.992
				60%				16.3		1025			391.2	2.620
				70%			24	22.52		1222			540.5	2.261
				80%				30.22		1454			725.3	2.005
				90%				38.13		1627			915.1	1.778
				100%				40		1690			960.0	1.760
5045		1800KV		50%				8.92		670			214.1	3.130
				60%				13.78		899			330.7	2.718
				70%			24	18.94		1110			454.6	2.442
				80%				25.29		1342			607.0	2.211
				90%				32.86		1580			788.6	2.003
				100%				33.1		1580			794.4	1.989
5055		1950KV		50%				8.38		679			201.1	3.38
				60%				13.31		914			319.4	2.86
				70%			24	19.34		1169			464.2	2.52
				80%				26.24		1384			629.8	2.20
				90%				33.33		1587			799.9
				100%				39		1745			936.0	1.86
5045		2100KV		50%				8.13		540			170.7	3.163
				60%				11.93		716			250.5	2.858
				70%			21	16.68		925			350.3	2.641
				80%				22.08		1114			463.7	2.403
				90%				28.75		1335			603.8	2.211
				100%				36.55		1544			767.6	2.012
5055		2100KV		60%			21	14.13		830			296.7	2.797
				70%				20.15		1063			423.2	2.512
				80%				27.28		1277			572.9	2229

LN2207 1700KV 1900KV 2400KV Brushless Motor for RC Drone FPV

The LN2207 is a brushless motor with multiple KV options (1700KV/1900KV/2400KV), designed specifically for RC drones and FPV (First-Person View) systems. The "2207" in the model number indicates the s...

Parametri proizvoda

×

LN2807 6S 1300KV 5S 1500KV 4S 1700KV Brushless MotorForRC FPV Racing RC Drone Racing

Pošaljite upit

Electric Spec.
Max. P (W)	Voltage (V)		Max. I. (A)	KV	No-load Current (A)		Resistance (mΩ)	Poles	Motor Dim. (mm)	Stator Dim. (mm)	Mounting (mm)	N.W. (g)		Prop. (inch)
1400(6S)	2S~6S		55(6S)	1350	1.8		82	14	φ33*19.6	φ28*7	M3-19*19	52		6"~7"
Thrust Testing Data
Propeller		KV Value		Throttle		Voltage (V)		Current (A)	Thrust Force (g)	Speed (RPM)	Input Power (W)		Efficiency (g/W)
GF7037*3		1350		10%		24.67		0.3	41	3149	6.49		6.28
				20%		24.67		1.1	166	6076	26.40		6.30
				30%		24.65		2.74	375	8822	67.57		5.55
				40%		24.64		5.23	628	11254	128.97		4.87
				50%		24.61		8.18	866	13189	201.29		4.30
				60%		24.57		12.66	1178	15327	311.03		3.79
				70%		24.52		19.13	1570	17586	468.99		3.35
				80%		24.47		26.52	1955	19595	648.99		3.01
				90%		24.40		35.37	2367	21357	862.91		2.74
				100%		24.31		45.81	2722	22783	1113.52		2.44
HQ7X37*3		1350		10%		24.67		0.3	36	3171	6.24		5.80
				20%		24.67		1.0	153	6120	25.19		6.07
				30%		24.67		2.63	352	8909	64.78		5.43
				40%		24.65		5.11	607	11291	126.01		4.82
				50%		24.63		8.05	846	13339	198.27		4.27
				60%		24.59		12.61	1159	15420	309.96		3.74
				70%		24.53		19.10	1529	17642	468.40		3.26
				80%		24.48		26.90	1915	19605	658.61		2.91
				90%		24.41		35.80	2274	21297	873.78		2.60
				100%		24.32		46.19	2537	22602	1123.37		2.26

LN2807 6S 1300KV 5S 1500KV 4S 1700KV Brushless MotorForRC FPV Racing RC Drone Racing

The LN2207 series of brushless motors comes in three different KV ratings: 1700KV, 1900KV, and 2400KV. The KV rating represents the motor's speed constant, indicating the increase in RPM per volt of i...

Parametri proizvoda

×

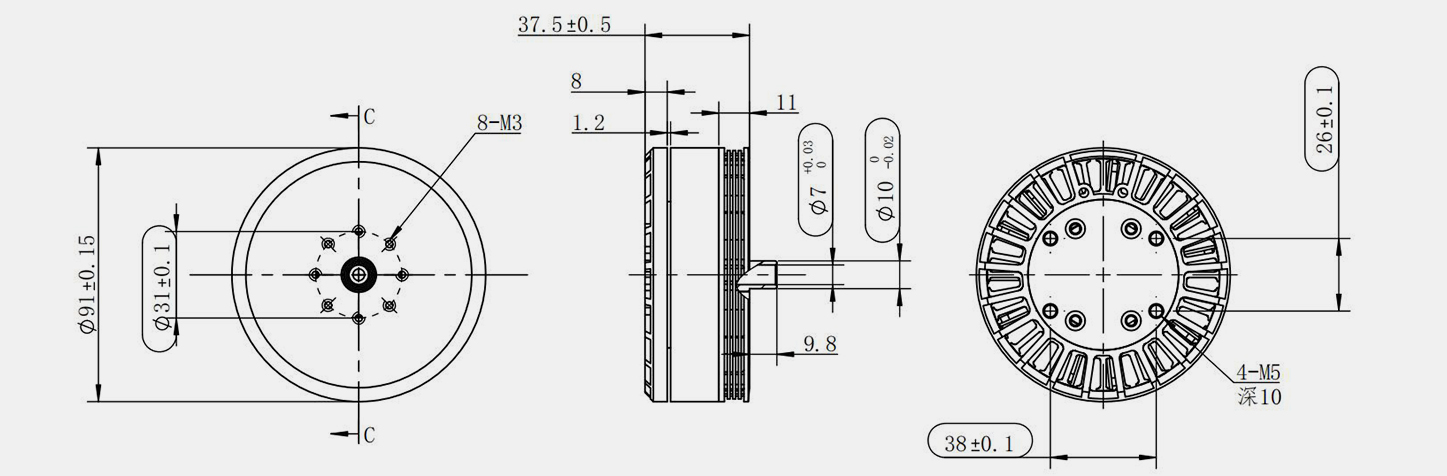

Motor drona bez četkica serije LN8313 12S (85KV / 95KV / 100KV) – potisak od 4 kg

Pošaljite upit

Spec.

KV

Specifikacije baterije

Maks. sila potiska

(KG)

Recom.Takeoff Welght

(KG)

Težina sustava

(KG)

Maks. struja

(A)

Max.Con.Current

(A)

Motor Dim.

(mm)

Dim. statora

(mm)

Montaža Dim.

(mm)

Prop.

(inč)

100

12-14 (prikaz, ostalo).

15.5

5-7

0.65

65

15

Ö91*37.5

Ö83*13

8-M3*10

3011

Podaci o ispitivanju potiska
Propeler	U(V)	gas (%)	Potisak (g)	I(A)	P(W)	Učinkovitost (g/W)
3011	46.05	40%	2530	4.6	211.6	14.7
	46.02	46%	3373	6.6	303.6	12.3
	46.03	48%	3675	8.3	381.8	10.6
	46.03	56%	4845	11.0	506	9.5
	46.03	60%	5610	13.6	625.6	8.7
	46.01	66%	6728	16.0	736	8.0
	46.0	70%	7348	20.0	920	7.4
	45.99	74%	8338	24.0	1104	7.0
	46.0	78%	9100	27.2	1251.2	6.6
	46.01	80%	9613	29.6	1361.6	6.2
	45.98	90%	12100	41.3	1899.8	5.9
	45.9	95%	13350	46.6	2143.6	5.3
	45.85	100%	14499	52.3	2405.8	4.9

Motor drona bez četkica serije LN8313 12S (85KV / 95KV / 100KV) – potisak od 4 kg

The Motor drona bez četkica serije LN8313 12S dizajniran je za bespilotne letjelice velike snage, pružajući iznimne performanse i pouzdanost. Dostupno u Opcije 85KV, 95KV i 100KV , ov...

Parametri proizvoda

×

LN10018 Serija 12S Motor za bespilotne letjelice bez četkica (90KV / 100KV) – 5kg potiska UAV motor velike snage

Pošaljite upit

Spec.
KV	Specifikacije baterije	Maks. Sila potiska (KG)	Recom.Takeoff Težina (KG)	Težina sustava (KG)	Maks. Trenutni (A)	Maks. Con. Trenutni (A)		Motor Dim.		Stator Dim. (mm)	Montaža Dim. (mm)	Prop. (inč)
85	12S-14S	26.5	11-13 (prikaz, ostalo).	1.45	100	15		φ109*42,5		φ100*18	8-M4*10	36"
Podaci o ispitivanju potiska
Propeler	Napon (V)		gas（%)	Potisak (g)	Struja (A)		Snaga (W)		Brzina (RPM)		Učinkovitost (g/W)
36"	53,6 V		40%	5072	8.31		444.9		1815		11.19
	53,6 V		45%	6212	1.21		600.3		2014		10.16
	53,6 V		50%	7466	4.61		782.5		2208		9.47
	53,6 V		52%	8017	6.21		868.3		2286		9.08
	53,6 V		54%	8642	7.91		959.4		2367		8.89
	53,6 V		56%	9202	9.82		1061.2		2446		8.57
	53,6 V		58%	9832	1.82		1168.4		2523		8.31
	53,6 V		60%	10451	3.92		1281.1		2604		8.01
	53,6 V		62%	11139	6.22		1404.3		2682		7.78
	53,6 V		64%	11810	8.53		1527.6		2755		7.55
	53,6 V		66%	12516	1.13		1666.9		2837		7.37
	53,6 V		68%	13188	3.53		1795.6		2912		7.16
	53,2 V		70%	13866	6.44		1951		2993		6.95
	53,1 V		75%	15943	4.95		2406.6		3189		6.45
	53,0 V		80%	17968	4.48		2915.8		3384		6
	53,6 V		90%	24287	2.6		4427.4		3780		5.23
	53,6 V		100%	26462	100		5338.5		4047		5.05

LN10018 Serija 12S Motor za bespilotne letjelice bez četkica (90KV / 100KV) – 5kg potiska UAV motor velike snage

LN10018 Series 12S motor za bespilotne letjelice bez četkica je motor za bespilotne letjelice visokih performansi dizajniran za multirotore za teške terete i profesionalne bespilotne letjelice. Dos...

Parametri proizvoda

×

Motor drona bez četkica serije LN13720 serije 24S (34KV / 38KV) – motor za UAV velike snage

Pošaljite upit

Motor drona bez četkica serije LN13720 serije 24S (34KV / 38KV) – motor za UAV velike snage

The Motor drona bez četkica serije LN13720 24S je projektiran za UAV aplikacije velike snage i teškog dizanja . sa 34KV i 38KV opcije , ovaj motor pruža izniman okretni moment ...
